Chevrolet / Cruze 1.6T / OPEL / LEXUS / FIAT High Performance Automobile Ignition Coil

Product Categories

Nanjing Tianyi Automobile Electric Manufacturing Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : TY

Model Number : TY0006C05

Certification : ISO/TS 16949: 2009

Place of Origin : CHINA

MOQ : 120 PCS

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10,000 pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Based on customer

Brand : DELPHI

Working temp : -20℃~150℃

OEM : 96476979 / 55570160 / 28125877

Material : Imported lacquered wire, epoxy, plastic, and silicone rubber

Car : Chevrolet / Cruze 1.6T / OPEL / LEXUS / FIAT

Feature : High voltage and temp resistant

Contact Now

Quality Ignition Coil 96476979 / 55570160 / 28125877 for Chevrolet / Cruze 1.6T / OPEL / LEXUS / FIAT

1. Applicable cars:

2. Specifications of coil:

Item	Technical Parameter
Static values before thermal shock test
Primary resistance (mΩ)	500±10%
Primary inductivity (mH)	/
Secondary resistance (kΩ)	15±10%
Secondary inductivity (H)	/
High voltage before thermal shock test
Secondary voltage (kV) 1MΩ	＞30
Secondary voltage (kV) 1MΩ 50pF	＞25
“30kV”-test before thermal shock test
30kV over 3 min (open load)	OK
Thermal shock test
50 Zyklen (40min -20℃；20min +120℃)	OK
Static values after thermal shock test
Primary resistance (mΩ)	500±10%
Primary inductivity (mH)	/
Secondary resistance (kΩ)	15±10%
Secondary inductivity (H)	/
High voltage after thermal shock test
Secondary voltage (kV) 1MΩ	＞30
Secondary voltage (kV) 1MΩ 50pF	＞25
“30kV”-test before thermal shock test
30kV over 3 min (open load)	OK

3. Features of coil:

Made of imported lacquered wire, epoxy, plastic, and silicone rubber, guarantee excellent high temperature and voltage resistance, huge power as well as stable performance
Can be used in the temp of -20℃~150℃
Prevent water, dust and shaking
Can work in severe environment, but keeping great ductility without cracking
Owns a long life
Environment friendly
All plastic and rubber parts of coil are produced by ourselves, providing high uniformity of products.

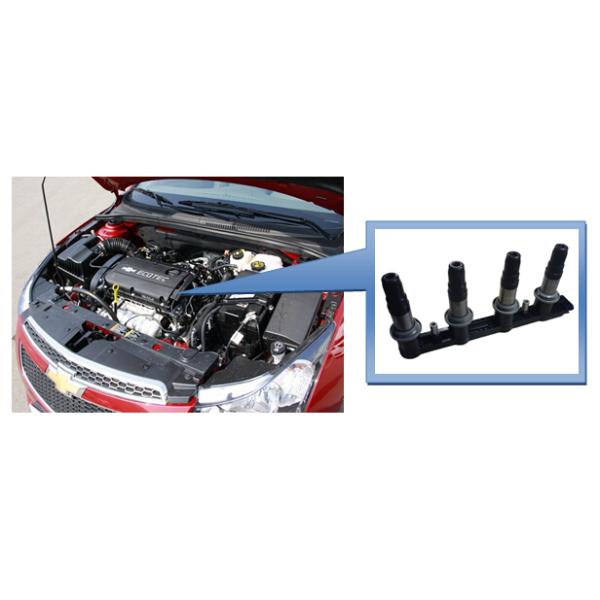

5. Picture:

Chevrolet / Cruze 1.6T / OPEL / LEXUS / FIAT High Performance Automobile Ignition Coil
